HUSQVARNA® VIKING® Interchangeable Dual Feed Foot
Machine Compatibility:
Compatible with Husqvarna® Viking® machine groups 5, 6, and 7.
*Not compatible with EMERALD™ series, EDEN ROSE™ 250M, TRIBUTE™ 140M and 145M, or ONYX™ series machines.

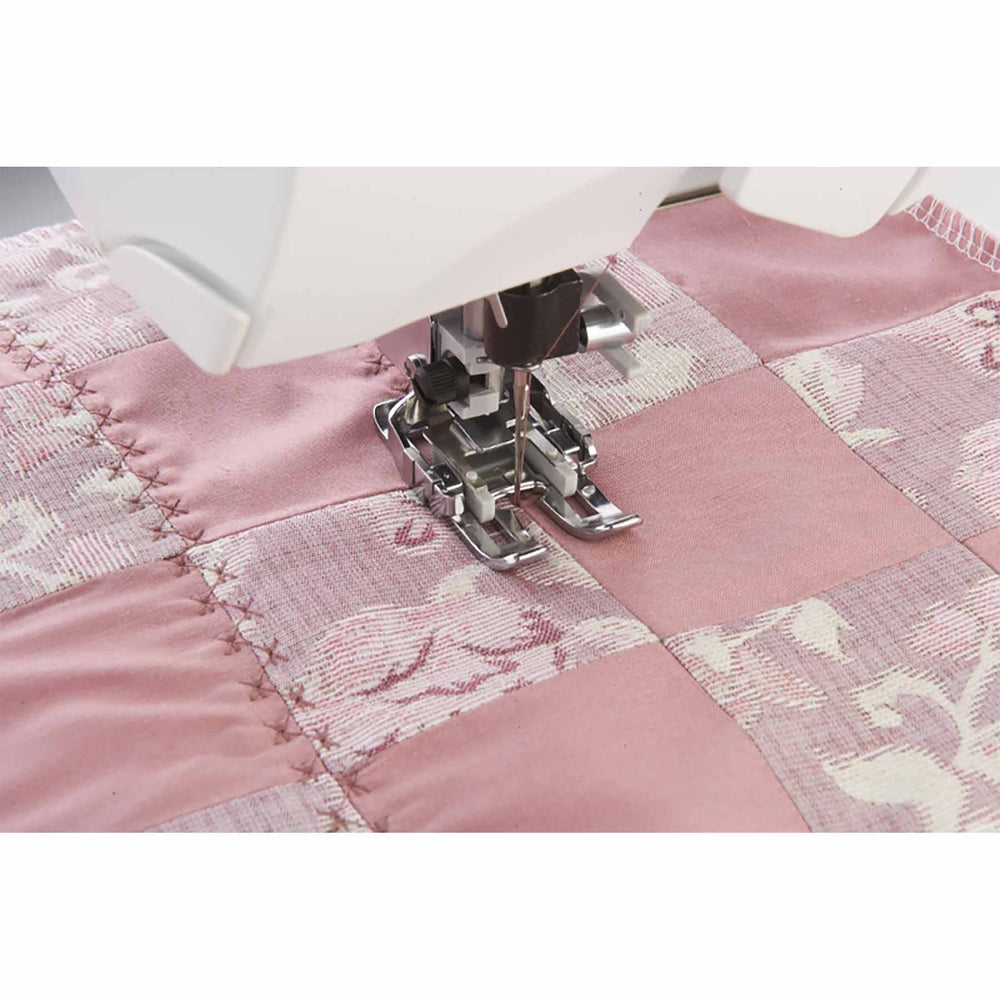

The Interchangeable Dual Feed Foot is designed to feed multiple layers of fabric or batting evenly. It is ideal for quilting, sewing stretch fabrics, velvet, imitation leather, and any project that requires precise pattern matching. The foot ensures that the top and bottom layers move at the same pace for flawless results.
You can easily switch between different changeable presser feet to suit your project. Use the Changeable Straight Stitch Foot for center needle straight stitching, and the Changeable Zigzag Foot for decorative stitches up to 7 mm wide and 6 mm long.
How to Use:
Remove the presser foot ankle by unscrewing the ankle screw.
Attach the Dual Feed Foot from the back of the machine, placing the fork over the needle clamp screw. Secure it using the ankle screw.
Reduce presser foot pressure to 3.

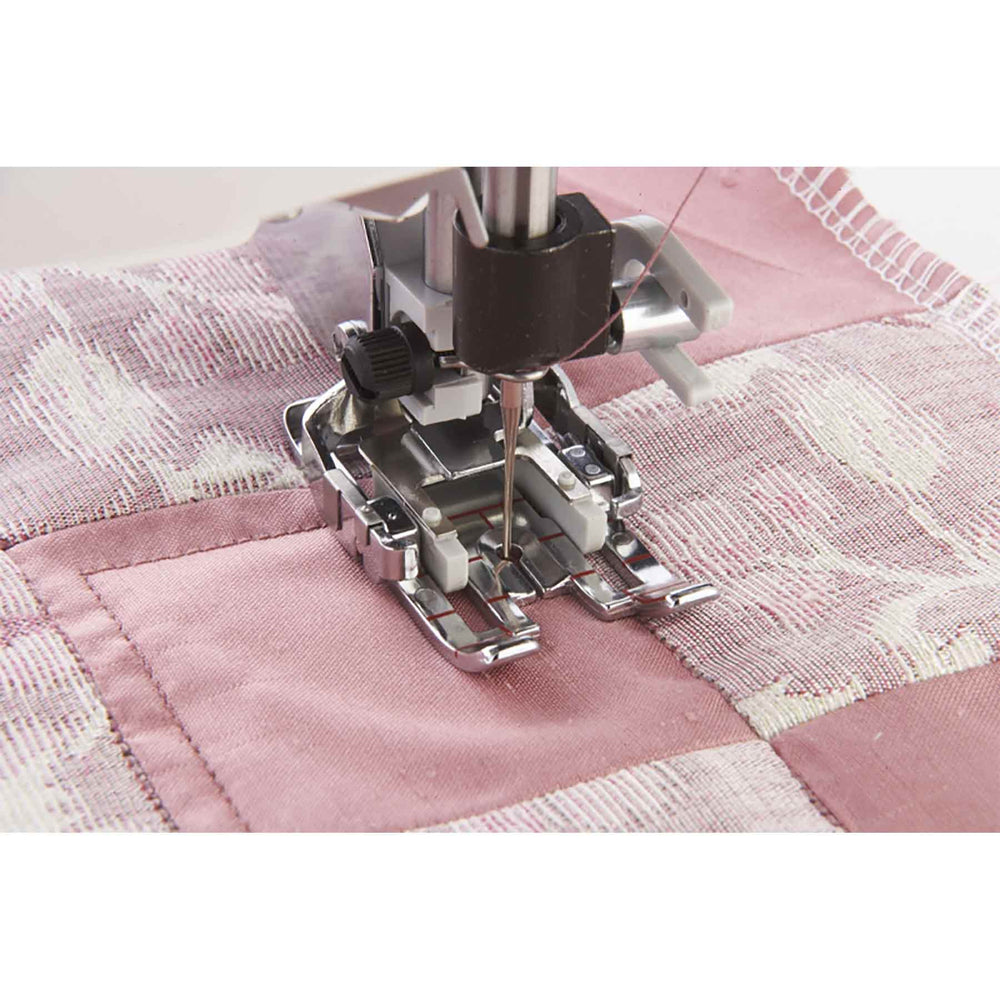

To attach a changeable foot: place the presser foot under the Dual Feed Foot with the bar raised, and push the foot upward until it snaps into place.
To remove the foot: push the front of the foot upward until it releases.
Attaching the Guides:

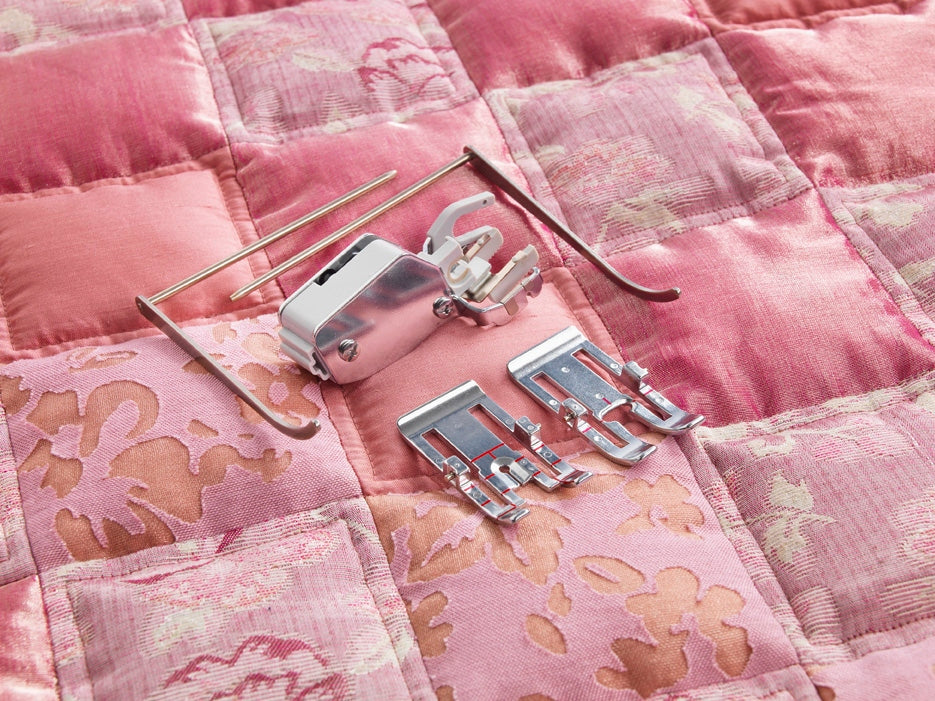

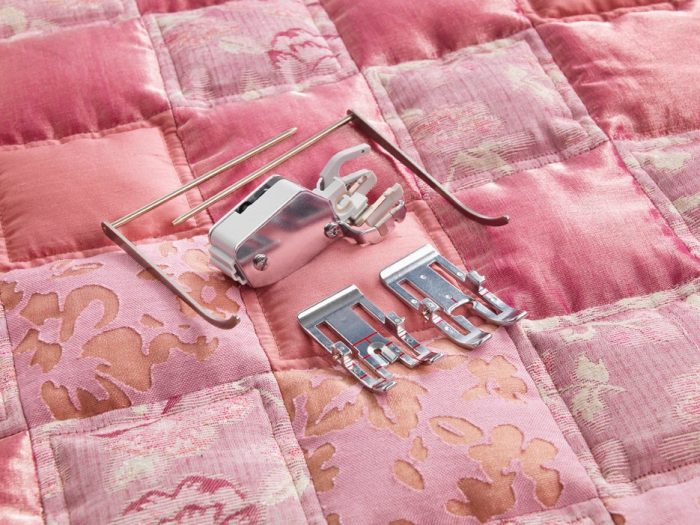

Two guides are included to help you sew evenly spaced parallel rows—ideal for channel quilting or tucks. One guide fits on the left side, and the other on the right.
Insert the guide into the hole at the back of the foot.
Adjust spacing by sliding the guide left or right as needed.
Please mention your machine model when placing your order so we can send you the correct foot.
