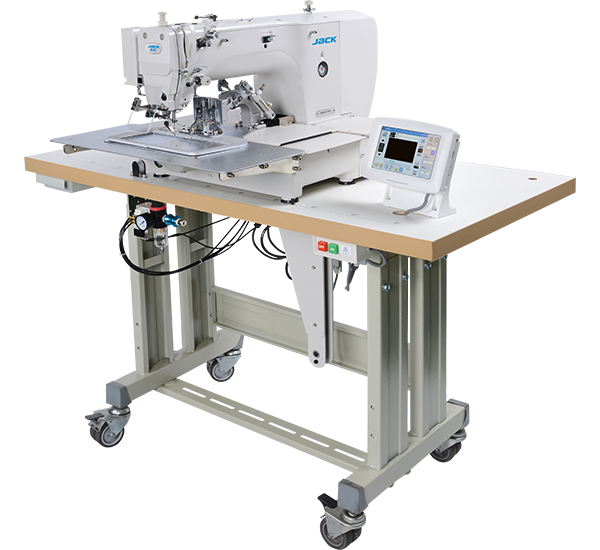

Jack JK-T2210-F3 – Large Format Programmable Pattern Sewing Machine
The Jack JK-T2210-F3 is a computerized, programmable pattern sewing machine designed for large-format sewing, capable of handling patterns up to 220 × 110 mm across various materials. Its wide sewing area allows operators to work on thicker or more complex materials than most machines in its class.
Equipped with a Direct Drive AC servo motor and DPx17 needle system, the machine provides smooth, quiet operation and precise stitching. The Intermediate Presser Foot System can be programmed to lift up to 22 mm, ensuring consistent stitch quality across uneven materials. It accommodates needles from size 11 to 25 for maximum versatility.
The touchscreen control panel allows operators to program patterns directly or import them via USB from the included Pattern Design Software. The optional Slide Step Label Sewing Clamp makes it easy to sew labels and small components.
Automatic functions include:
Thread trimming
Pneumatic presser foot lifter
Adjustable sewing speed
Electronic thread tension
Integrated bobbin winder and adjustable LED lighting
The JK-T2210-F3 comes complete with table and stand, offers optional on-site training, template design services, and technical support. Ideal for workshops and factories requiring precision, large-format pattern sewing, and heavy-duty applications.
Technical specifications:
Sewing area: 220 × 110 mm
Max speed: 2700 spm
Presser foot lift: 22 mm
Needle system: DPx17 (#11–25)
Motor: Direct Drive AC Servo
Feed type: Drop Feed
