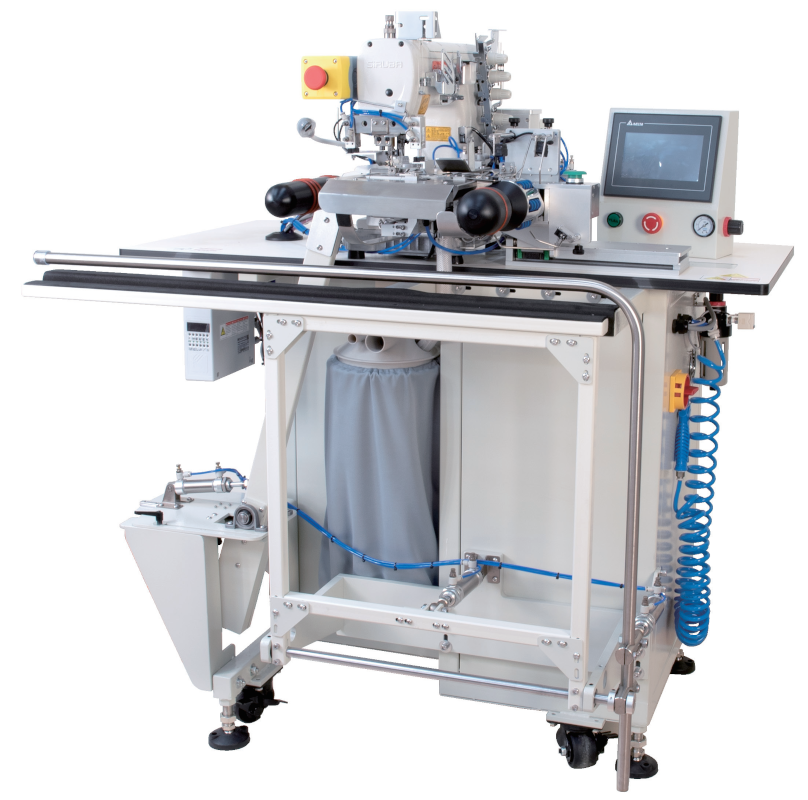

High-performance sewing machine with a ladder stitch designed for hemming the bottoms of T-shirts, Polo shirts, etc. The machine automatically positions the material under the machine foot. The entire process of hemming the bottom of the shirt is fully automatic, without operator intervention.

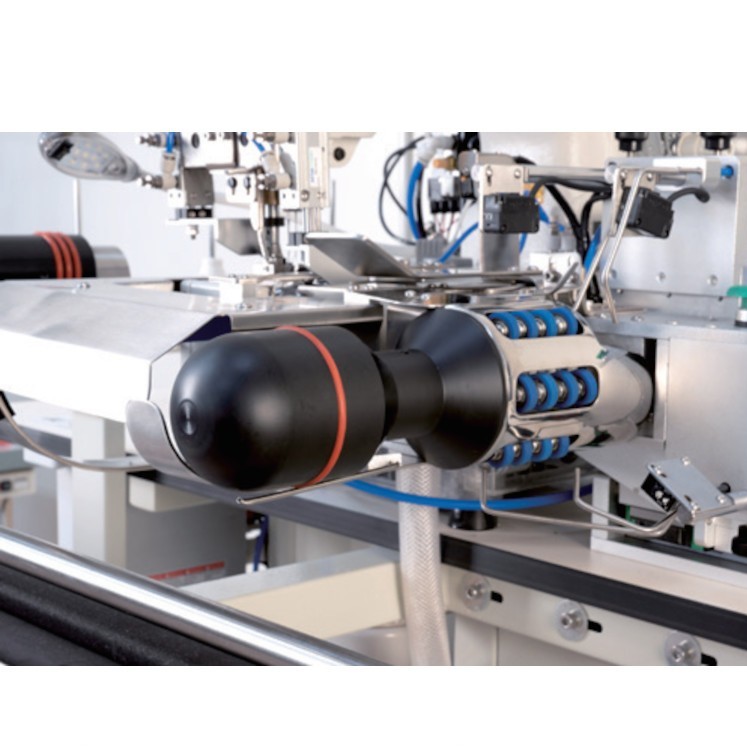

The machine is equipped with a Siruba C007KP cylindrical sewing head, which ensures the highest stitch quality and cuts off the edge of the folded material before sewing (lower edge material cutter).
Automatic thread cutting and presser foot lifting as well as suction of cut-off scraps ensure high quality and sewing efficiency.
Control via a clear and easy-to-use graphic touch control panel.
Automatic adjustment of sewing parameters when changing the size of the rolled-up T-shirt allows sewing products with different circumferences without the need to correct the machine settings.
– automatic edge control
– system for flattening the rolled-up edges of the knitted fabric
– end-of-thread sensors
– cutting and suction of the rolled-up edge
– stacker that automatically receives sewn T-shirts
– very easy to use – the machine does not require sewing skills
– it is possible to operate two machines by one operator
Technical parameters:
– sewing speed 4,000 stitches/min
– needle gauge 4.0; 4.8; standard 5.6 or 6.4 mm
– hem width 15 – 30 mm
– efficiency around 90-150 pcs/h
– hem width 380 – 900 mm
– UY128GAS needles
– power 850W
– power supply 230V
– weight 180 kg
– air consumption 190l/min, working pressure 4 bar
Compressed air connection required.
