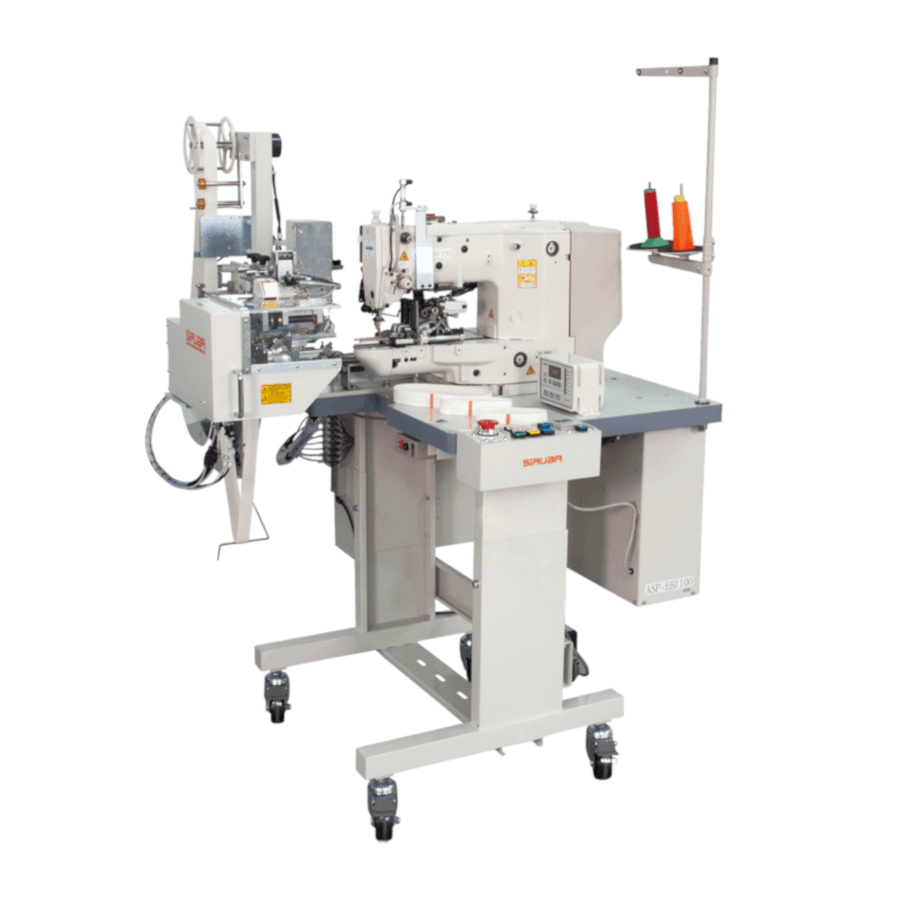

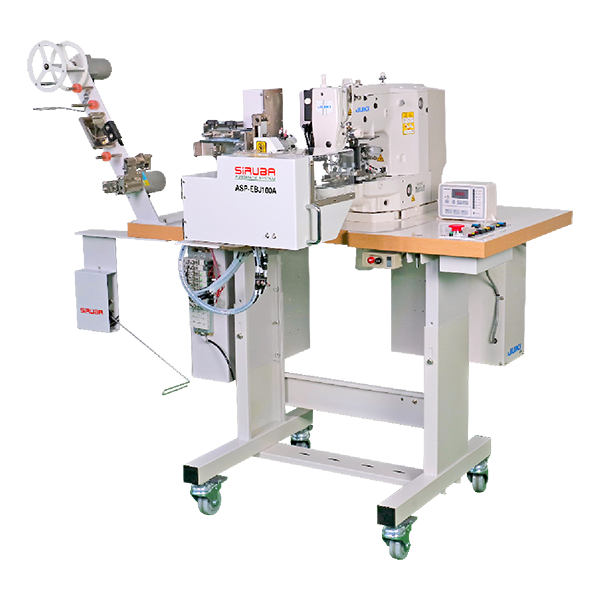

Siruba ASP‑EBJ100 – High-Performance Automatic Elastic Band Joining Machine
The Siruba ASP‑EBJ100 is a specialized industrial sewing system engineered for seamless production of closed-loop elastic bands, such as those used in underwear, boxers, tops, and activewear waistbands. Precision-engineered, this machine measures, cuts, folds, and stitches elastic bands in a single automated sequence—ushering the material from unwinding to stitching and finally dropping the finished loop into a collection carton—without manual handling. Central to its performance is a Juki LK‑1920 sewing head and a DP×5 (or DP×17 for some options) needle configuration delivering reliable single-needle lockstitch performance
Operating at speeds up to 2,500–2,900 stitches per minute (depending on version), the ASP‑EBJ100 can process bands ranging from 20 mm to 55 mm wide and lengths between 300 mm and 1,980 mm, with overlapping edges adjustable between 0 and 13 mm. Under typical output assumptions (190 stitches per band), the machine can produce approximately 3,600 units in an 8-hour shift. Powered by a 220–230 V supply and requiring a compressed air connection (~30 L/min at 0.5 MPa), it is compactly housed (around 1230 × 1030 × 1530 mm with stand) and designed for full automation with optional aids like pre-ironing and logo detection
Key Features
Fully Automated Elastic Preparation & Sewing – Measures, cuts, feeds, folds, and stitches in sequence with consistent precision and no operator intervention
siruba.com
High Throughput & Fast Sewing Speed – Stitching speed of up to 2,900 SPM enables output of ~3,600 bands per shift under standard settings
Adjustable Panel for Width, Length & Overlap – Band width adjustable from 20–55 mm, length 300–1,980 mm, with edge overlap settings up to 13 mm for customized finishes
JUKI LK‑1920 Sewing Head & Lockstitch System – Single-needle DP×5 system (or optional DP×17) delivers durable lockstitch quality, and uses servo control for smooth operation
Optional Enhancements – Supports features like pre‑ironing for wrinkle-free processing, logo recognition for precise placement, real-time sensor alarm/pause, and unattended production for quicker ROI
