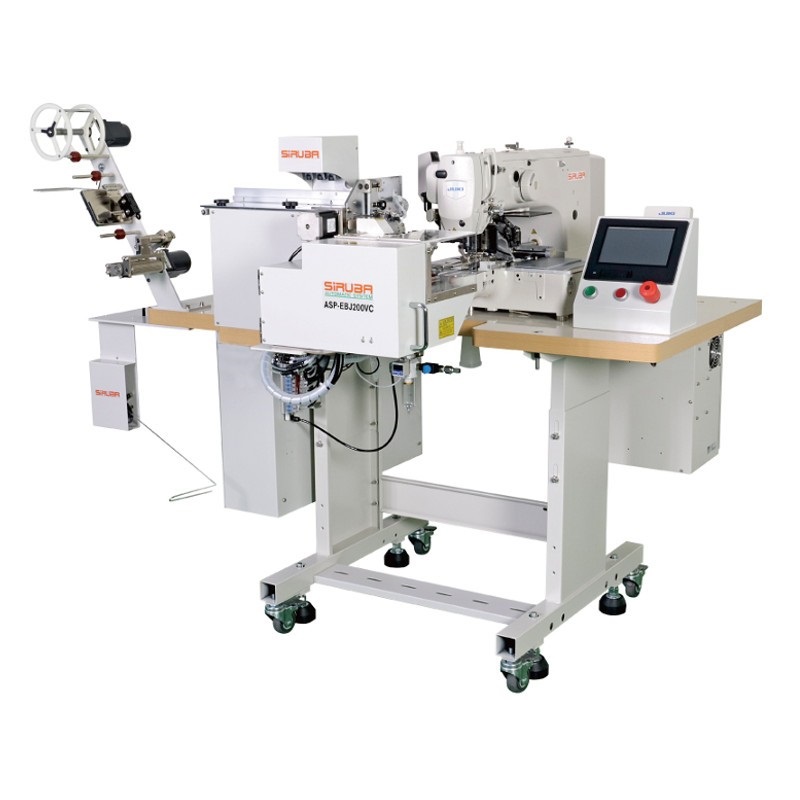

The Siruba ASP-EBJ200 is a high-performance, fully automatic sewing machine designed to connect flat rubber bands into closed circuits, ideal for manufacturing intimate apparel such as slips, panties, boxers, and tops. The machine automates the entire process of elastic joining, including accurate measuring, cutting, folding, and stitching, ensuring consistent quality and high efficiency with minimal operator involvement.
This machine supports rubber widths from 20 to 90 mm and adjustable rubber lengths from 300 mm to 1980 mm, allowing for versatile applications across various garment types. The overlap size of sewn edges can be adjusted from 0 to 13 mm to achieve the desired seam strength and appearance. With a maximum sewing speed of 2500 stitches per minute, it delivers reliable and durable lockstitch seams suitable for elastic materials.
The ASP-EBJ200 features an automatic cutting and folding mechanism that precisely measures the rubber to the preset length, folds the edges together, and stitches according to programmed patterns. After sewing, the finished piece is automatically dropped into a collection area, streamlining production and reducing manual handling.
Designed for high-volume production, the machine can produce up to 3600 pieces in an 8-hour shift, assuming an average of 190 stitches per connected rubber band. The needle system is optimized for durable stitching of elastic materials. The machine operates on a 230V power supply and requires a compressed air connection for pneumatic components.
Thanks to its automation and user-friendly design, the Siruba ASP-EBJ200 minimizes labor costs, reduces waste, and ensures consistent seam quality, making it an essential tool for efficient manufacturing of elastic waistband and similar products.
Key Features:
Fully automatic process: measuring, cutting, folding, and stitching flat rubber bands for closed loops
Adjustable rubber width (20–90 mm) and length (300–1980 mm) for diverse production needs
High sewing speed up to 2500 stitches per minute for efficient output
Production capacity of up to 3600 pieces per 8-hour shift
Automated finished product drop system for smooth workflow and less manual labor
