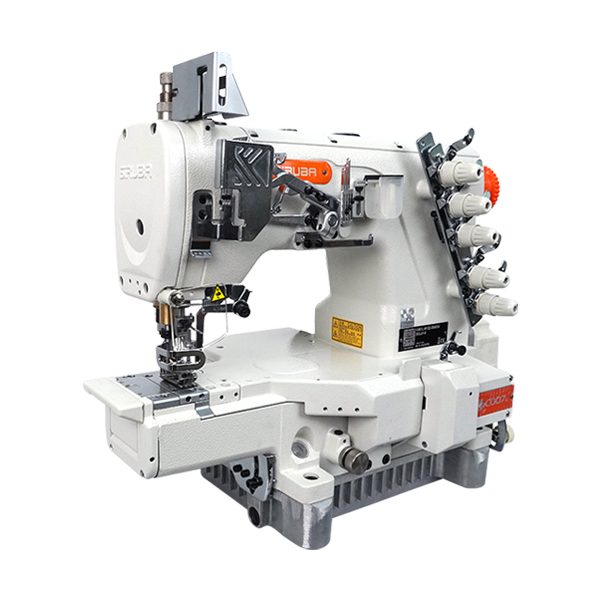

Ultra High Speed Cylinder Bed Interlock Sewing Machine – Precision, Speed, and Durability for Industrial Sewing
The Ultra High Speed Cylinder Bed Interlock Sewing Machine is engineered for demanding industrial sewing applications where speed, precision, and fabric handling are critical. Its design incorporates innovative features that improve operator comfort, sewing quality, and machine longevity, making it a versatile tool for a wide range of textile products, including garments, accessories, and technical textiles.
One of the key innovations is the recessed machine bed, which brings the sewing material closer to the needle hole. This design improves operator visibility and control, resulting in more precise and smoother stitching. By reducing the distance between the fabric and the needle, it also minimizes material distortion and increases sewing accuracy, particularly important for complex seams and fine fabrics.
Complementing this, the machine features a shortened recessed cylinder bed on the front cover. This shorter cylinder enhances the machine’s operating performance by improving maneuverability and accessibility, especially when sewing extensive covering seams, hemming, or wrapping operations. The shortened design allows operators to work more comfortably in tight or curved areas, facilitating a wider range of sewing applications with ease.
To ensure reliability and minimize maintenance downtime, the machine employs a new oil sealing technology around the needle bar and looper mechanisms. This advanced sealing system prevents oil splashes and leaks, reducing fabric contamination and improving workplace cleanliness. In addition, the use of wear-resistant materials in critical parts significantly enhances the machine’s durability, allowing it to maintain optimal performance over prolonged periods of heavy use.
The frame of the machine has been redesigned with a new cooling mechanism that effectively dissipates heat generated during high-speed operation. This cooling system not only extends the life of internal components but also reduces vibration, contributing to smoother sewing and a more comfortable user experience.
The differential feed dog design has been optimized for ease of adjustment, with the control conveniently placed on the right side of the operator. This layout allows for quick, hassle-free tuning of fabric feed ratios, enabling precise handling of different fabric types, thicknesses, and stretch characteristics. Such adjustability is essential when working with varying textile materials or when switching between sewing tasks.
An improved upper thread gripper mechanism provides faster and more precise thread movement while maintaining stable thread tension. This enhancement reduces thread breakage and skipped stitches, ensuring consistent stitch quality even at ultra-high sewing speeds.
Finally, the machine incorporates a dual thread take-up mechanism with an innovative lever and tension combination. This design optimizes thread control for both heavy and light fabrics, expanding the machine’s versatility across multiple textile applications. The dual take-up system stabilizes thread tension during sewing, contributing to uniform stitch formation and improved seam durability.
Key Features:
Recessed machine bed design brings fabric closer to the needle, improving precision, control, and stitch quality.
Shortened recessed cylinder bed enhances maneuverability for extensive covering seams, hemming, and wrapping operations.
Advanced oil sealing technology prevents oil splash contamination and increases machine durability with wear-resistant materials.
New cooling system and vibration reduction improve operator comfort and extend component lifespan during high-speed sewing.
Easy-to-adjust differential feed dog located conveniently for quick fabric feed ratio changes to accommodate various textiles.
