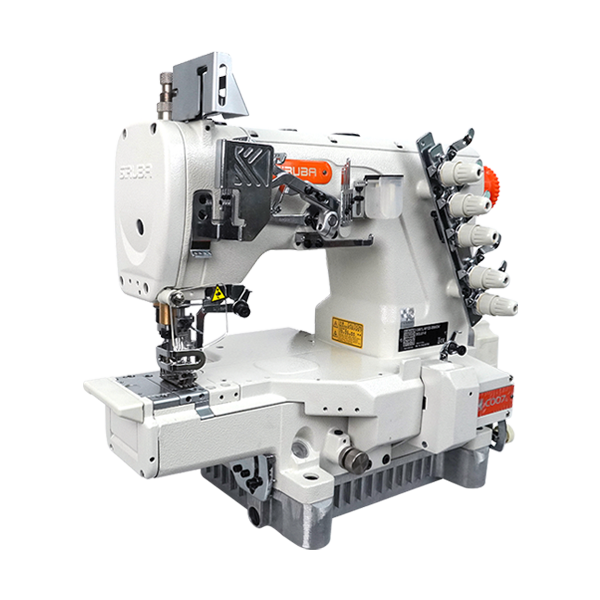

The Siruba C007L-W122-356/CH/UTR/DCLS1-2 is a high-performance industrial interlock sewing machine designed for precision stitching of knitted fabrics, making it ideal for applications in sportswear, underwear, and t-shirt production. This model is part of Siruba’s C007L series, known for its advanced features and efficiency in garment manufacturing.
Key Features:
Recessed Cylinder Bed Design: The recessed cylinder bed brings the sewing material closer to the needle hole, facilitating more precise and smoother sewing, especially for tubular items like sleeves and pant legs.
High-Speed Operation: Capable of operating at speeds up to 6,000 RPM, the machine ensures fast and efficient production, meeting the demands of high-volume garment manufacturing.
Differential Feed Mechanism: The machine is equipped with a differential feed system that ensures consistent fabric feeding, preventing issues like stretching or puckering, particularly on elastic or slippery materials.
Automatic Thread Trimmer: An integrated automatic thread trimming system enhances productivity by automatically cutting both upper and lower threads at the end of each seam, reducing manual labor and increasing efficiency.
Energy-Efficient Servo Motor: The built-in servo motor reduces energy consumption and noise levels, contributing to a more sustainable and quieter working environment.
Dual Thread Take-up Mechanism: The new design of the dual thread take-up lever and thread tension combination is ideal for both heavy and light fabrics, widening the sewing applicable range and increasing versatility.
New Oil Sealing Technology: A new oil sealing structure used on the needle bar and looper mechanism efficiently avoids oil splash, enhancing performance and durability.
New Cool Down Technology: The frame structure has been renewed with a better cooling mechanism, reducing vibration and contributing to a better sewing experience.
Easy-to-Adjust Differential Feed Dog Design: The differential feed dog adjuster is conveniently placed on the right side of the operator, allowing for easy adjustments without hesitation.
New-Designed Upper Thread Gripper: The newly designed upper thread gripper provides fast, precise movement and grips the thread stably, ensuring consistent stitching quality.
Technical Specifications:
Stitch Type: Overlock stitch
Needle System: DPx5
Needle Gauge: 5.6 mm
Stitch Length: Adjustable up to 4.5 mm
Max Sewing Speed: 6,000 stitches per minute
Lubrication: Semi-dry system
Power Supply: 220V, 50/60Hz
Motor: Built-in servo motor
Weight: Approximately 60 kg
Applications:
The Siruba C007L-W122-356/CH/UTR/DCLS1-2 is suitable for a wide range of applications in the garment industry, including:
Sportswear Production: Efficiently handles stretchy and elastic materials commonly used in sports apparel.
Underwear Manufacturing: Provides precise stitching for delicate fabrics used in underwear.
T-Shirt Production: Ideal for sewing side seams and hems of t-shirts, ensuring durability and comfort.
Advantages:
Increased Productivity: High-speed operation and automatic features reduce cycle time and manual intervention.
Enhanced Stitch Quality: Advanced mechanisms ensure consistent and high-quality stitching, reducing defects.
User-Friendly Operation: Easy-to-adjust settings and ergonomic design improve operator comfort and efficiency.
Cost-Effective: Energy-efficient motor and reduced maintenance needs lower operational costs.
Versatility: Capable of handling a variety of fabrics and applications, making it a valuable asset for diverse garment manufacturing needs.
