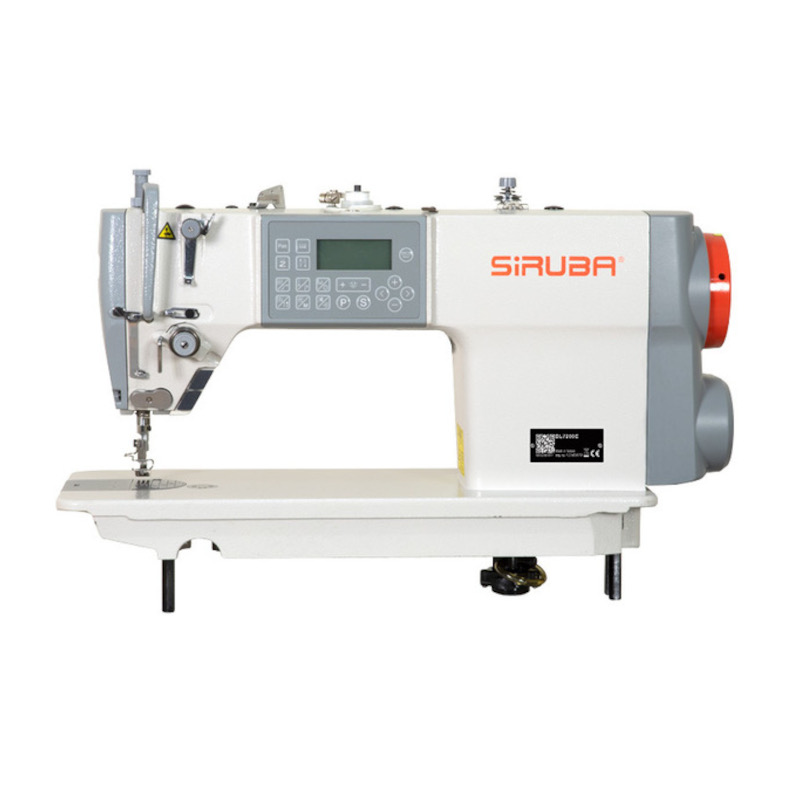

Siruba DL7200C‑BM1‑16Q – Advanced Single‑Needle Direct‑Drive Lockstitch
The Siruba DL7200C‑BM1‑16Q is a top-tier industrial lockstitch machine engineered for precision sewing across diverse fabric types. It integrates a Direct‑Drive servo motor within the machine head, delivering immediate needle response, low vibration, quiet operation, and up to 35% energy savings compared to traditional clutch-driven systems
This technology also eliminates belt-drive inefficiencies and improves longevity.
At the heart of the DL7200C is a stepper motor that provides ultra-fine control over stitch length and reverse/backtacking operations, achieving up to 0.1 mm accuracy
persiadenasun.com
Reverse stitching is executed precisely above previous seams, ensuring neat reinforcement at start and end points. The machine also supports up to 9 factory-programmed decorative or utility stitch patterns, with the option to custom load via USB, offering flexibility for specialized applications
A key durability feature is the patented inclined-plane presser foot lifter, designed to significantly increase electromagnetic component lifespan
Additionally, the oversized hand wheel incorporates a cooling fan to improve heat dissipation during continuous high-speed operation
Convenience and ease of use are enhanced by an intelligent control panel with USB interface, adjustable LED lighting for optimal visibility, and an automatic thread trimmer and backtacking functions
Additional features include needle positioning, programmable presser foot lifter, automatic lubrication, and several useful operators functions like stitch counters and lockstitch reinforcement.
Spec Highlights
Effectively configured for precision lockstitch sewing tasks, the DL7200C-BM1-16Q includes:
Direct-Drive servo motor built into the machine head, for rapid needle response, energy efficiency, and minimal vibration
Stepper-motor control offering 0.1 mm stitch length accuracy and perfect reverse stitches
9+ pre-programmed stitch patterns, plus USB functionality to add custom designs
Patented presser foot lifter mechanism, cooling handwheel, LED lighting, and centralized lubrication for durability .
Automatic thread trimming, reverse/backtacking, needle positioning, and full programmability for industrial production workflows .
Top 5 Features
Direct-Drive servo motor in the machine head — delivers quiet, precise, and energy-efficient operation.
Stepper motor with 0.1 mm accuracy for exact stitch length and perfect backtacking.
USB-enabled control panel with 9 built-in stitch patterns and support for custom designs.
Durable build with patented presser foot lifter, cooling fan handwheel, and automatic lubrication.
Comprehensive automatic functions — thread trimming, backtacking, needle positioning, and programmable stitch sequences.
