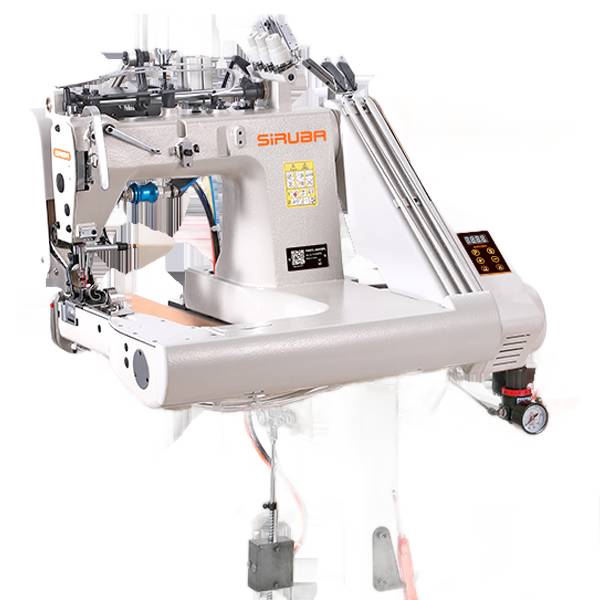

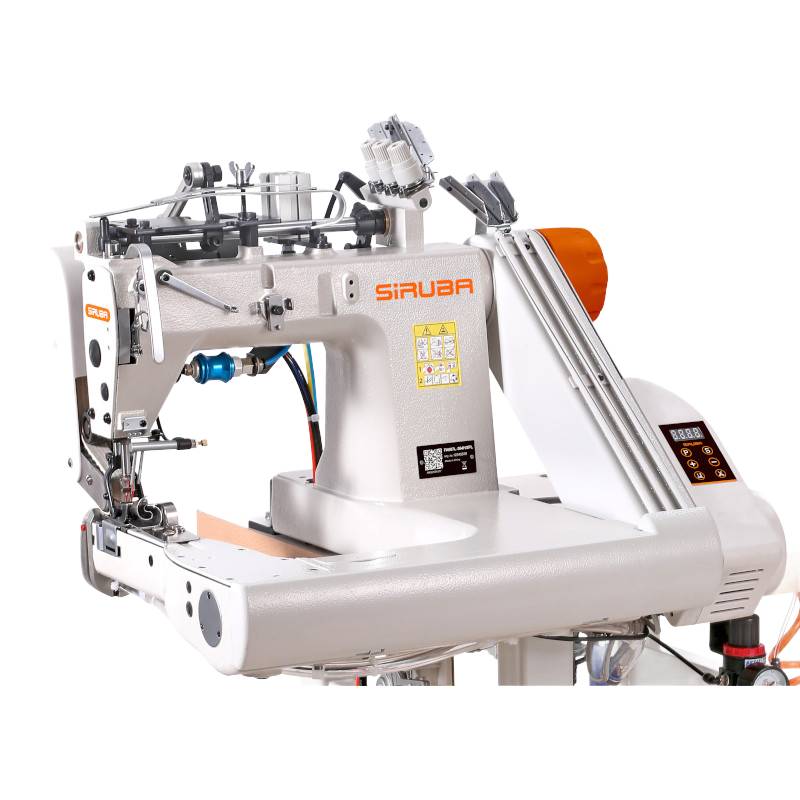

Siruba FA007L-364H/MPF/ECV – 3-Needle Cylinder Arm Chainstitch Machine with Automatic Features
The Siruba FA007L-364H/MPF/ECV is a high-performance industrial sewing machine engineered for demanding applications involving heavy materials such as denim, jeans, workwear, and technical textiles. Featuring a 3-needle, 6-thread chainstitch configuration, this machine delivers strong, reliable seams and is ideal for heavy-duty production environments.

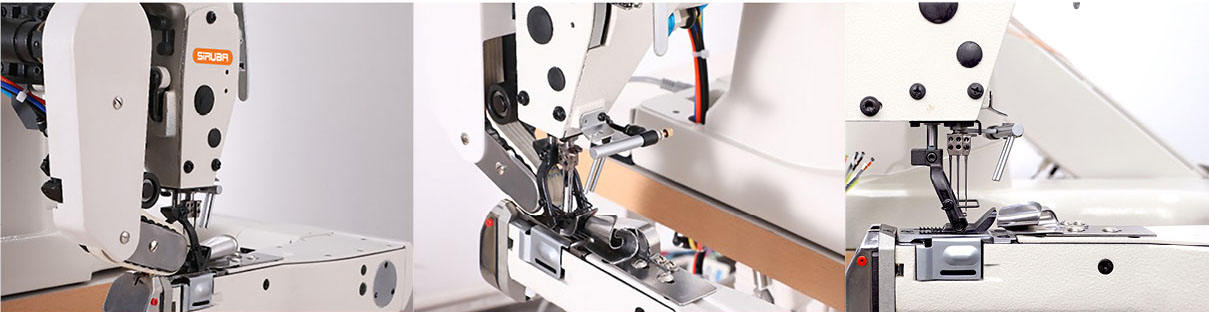

Built on a cylinder-bed arm design, the FA007L-364H allows for sewing tubular or cylindrical pieces with ease—perfect for operations such as hemming pant legs or attaching sleeves. The standard model includes a track-type rear puller for enhanced material handling and synchronized operation with the presser foot.
The integrated energy-saving 750W direct-drive servo motor ensures quiet operation, reduced power consumption, and eliminates the need for external motor housings. With its electronically controlled features—including automatic presser foot lifting, needle cooling, thread chain cutter (ECV), and a front-positioned winder—this machine streamlines production while minimizing operator effort and thread waste.
Its intuitive digital control panel allows operators to manage stitch settings and operational modes with ease, while the pneumatic systems for thread suction and presser foot lifting improve workflow efficiency.
Key Specifications:
Sewing Speed: Up to 3,500 stitches/min
Needle Gauge: 6.4 mm (Optional: 7.2, 8.0, 9.6, 12.7 mm)
Stitch Length: Adjustable from 2.1 to 3.8 mm
Needle Type: TVx5 #21
Power Supply: 230V / 50Hz
Compressed Air Connection Required
Key Features:
Automatic Functions – Includes presser foot lifter, thread chain cutter (ECV), needle cooling, and thread suction for enhanced automation.
Cylinder Arm Design – Perfect for cylindrical and tubular sewing applications like pant legs or sleeves.
Heavy Fabric Compatibility – Designed for thick and dense materials such as denim, canvas, and technical textiles.
Rear Puller System – Track-type puller aids in consistent fabric feeding and reduces stitch distortion.
Energy-Efficient Servo Motor – Integrated 750W direct-drive motor delivers quiet and low-vibration operation with reduced energy costs.
