EASY TO FOLLOW COLOUR-CODED THREAD GUIDES

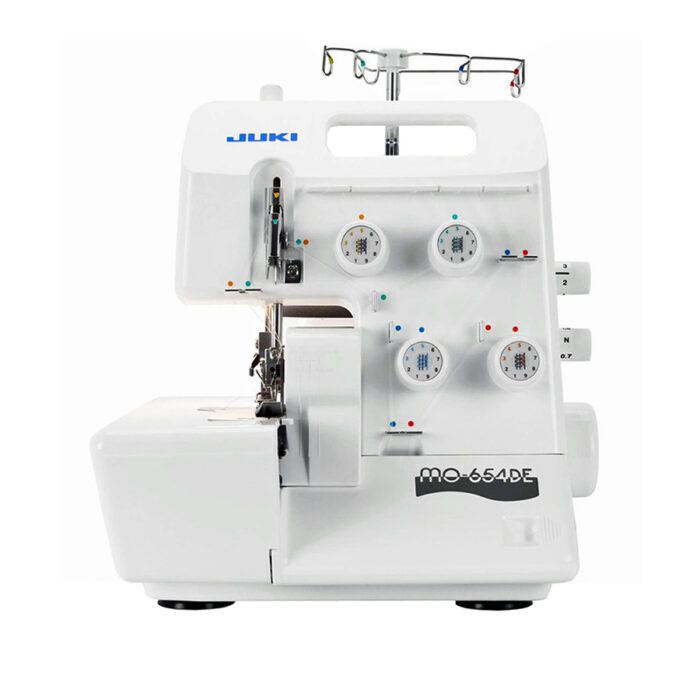

Threading the MO-654DE is simple. The thread paths are colour-coded and clearly marked.
EASY BUILT-IN ROLL HEM
Achieve a beautiful rolled edge very easily by moving the lever on the needle plate towards you and adjusting one of the tension dials
EASY TENSION ADJUSTMENT
1-Rotation Thread Tension Dials with normal tensions highlighted for simple, consistent tension adjustment
BRIGHT LIGHT
Lighting on the MO-654DE provides optimum lighting to the fabric and needle area
EASY TO ADJUST STITCH LENGTH
Adjustable Stitch Length within the range of 1- 4mm, by turning the dial conveniently located on the right-hand exterior of the machine.
DIFFERENTIAL FEED
Differential feed is to ensure that you always have a perfect seam. The differential feed also gives you the capability to gather lightweight fabrics and give you a lettuce leaf edge on different texture fabrics using the rolled hem facility.
HEAVY DUTY KNIFE SYSTEM
The knife system on the MO-654DE operates with a dedicated drive to assure consistent and easy cutting for both light and heavy fabrics
QUICK WIDTH CUTTING ADJUSTMENTS
The lower Knife Adjustment knob adjusts the lower knife quickly to change the width of fabric in the seam allowance, for perfect seams and rolled edges
MULTI-PURPOSE FOOT
The Multi-Purpose Foot, Standard on the MO-654DE, allows you to create overlock stitches and add tape, elastic, ribbon or sequins to your creations. Snap-on presser feet mean that you can easily change from the multi-purpose foot on one of the Juki Specialty feet and expand the creative potential of the MO-654DE
OVERLOCK PRECISION
The built-in seam guide takes the guesswork out of seam allowances. Use the conveniently located gauge on the guard cover. This will give you accurate seam allowances while your overlocking
SPECIFICATIONS
- Number of threads: 2/3/4 Threads
- Overlocking width: Left needle: 6mm/Right Needle: 4mm Rolled hem: 2mm
- Stitch Length: 1 to 4mm (standard: 2.5mm) Rolled hem: 1.5mm
- Differential Feed: 0.7 to 2.0 Ratio
- Tensions: Industrial Type Dial / 1 Rotation
- Built-in Rolled Hemming: Right (Narrow) or Left (wide) Needle / 2 or 3 thread
- Sewing Speed: Max 1,500 s.p.m
Dimensions: 270mm(W) x 345mm(D) x 295mm (H)
Weight: 7kg
