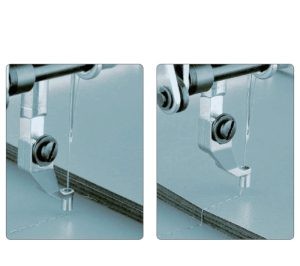

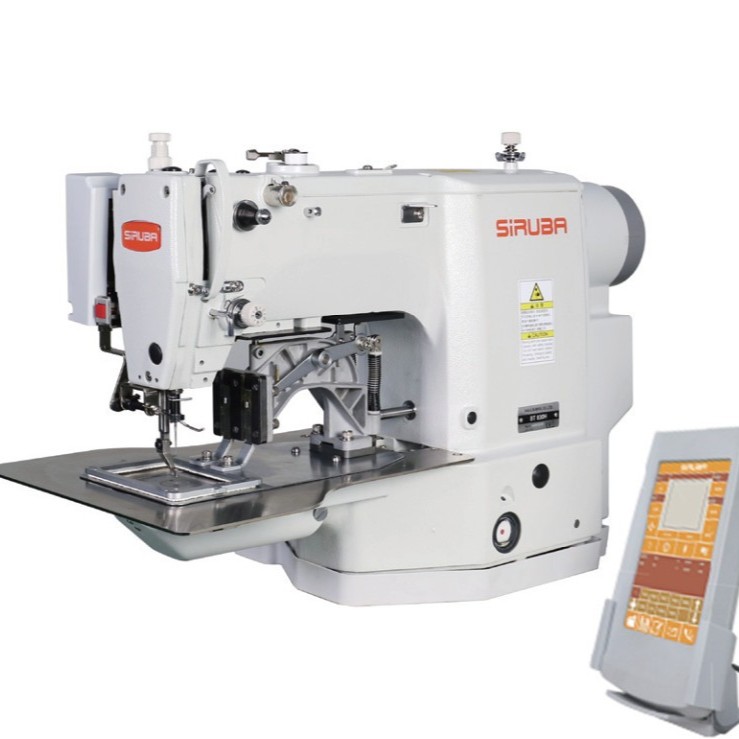

The Siruba BT-630Q-01E is an electronically controlled, universal, programmable 2-thread bartacking machine designed specifically for lightweight and medium-weight materials. It offers a large work area of 80 x 60 mm, making it ideal for sewing repeated patterns such as labels, Velcro, and fastenings. The machine features a presser foot designed to prevent the material from lifting during needle penetration, ensuring precise and clean stitching.
Powered by a modern, energy-efficient 550W servo motor and stepper motors, the machine provides smooth and quiet operation. Its advanced closed-circuit lubrication system supplies oil only to the hook mechanism, preventing any oil leakage from the upper parts of the machine that could stain the fabric. The automatic thread trimming system leaves shorter thread ends on the material, improving the appearance of the stitches and eliminating the need for manual trimming. The user-friendly touchscreen control panel allows easy creation and customization of stitch patterns, with clear icons and smooth adjustments for stitch length and width. The USB port facilitates easy transfer of stitch designs. Importantly, the machine operates entirely on electric control and does not require compressed air.
Technical Specifications:
Sewing speed: 3,000 stitches per minute

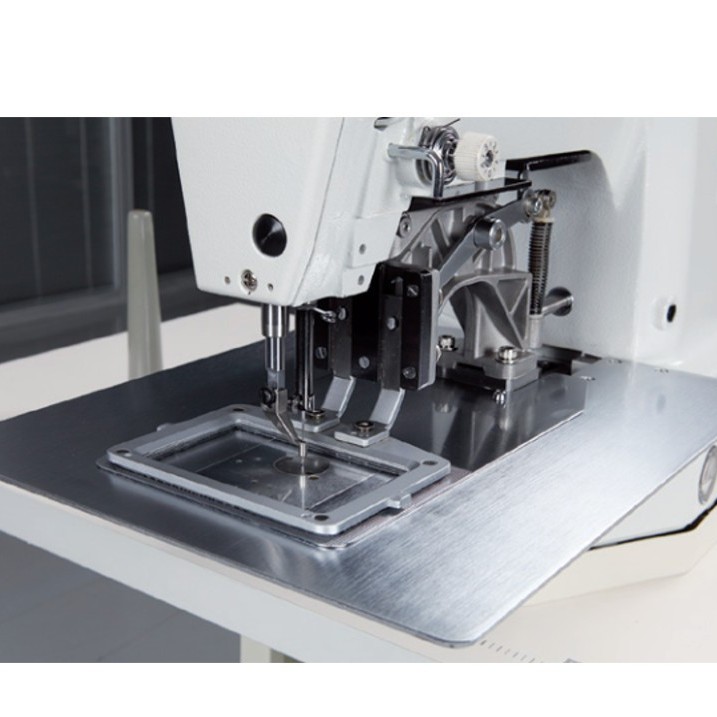

Standard work area: 80 x 60 mm
Stitch length: 0.05 – 12.7 mm
Maximum stitches per program: 5,000
Presser foot lift: 17 mm with smooth adjustment
Built-in stitch patterns: 89 (memory capacity up to 512 patterns / 500,000 stitches)
Needle types: 135×5 or 135×17
Power supply: 230V/50Hz
5 Key Features:
Large 80 x 60 mm sewing area for versatile pattern applications
Energy-efficient 550W servo motor with precise stepper motor control
Closed-circuit lubrication system preventing oil stains on fabrics
Automatic thread trimming system for clean, neat finishes
Intuitive touchscreen panel with USB connectivity for easy pattern transfer
